DIN 547 Brass Two-Hole Round Nut

Round nut with two face holes (two-pin spanner) — turned in brass to standard and to your drawing.

Home / Products / Standard Parts / Brass Nuts / DIN 547

A DIN 547 nut is a round nut with two holes drilled into one face, turned for a two-pin (face) spanner; it gives a compact, flush fixing on shafts and spindles where a hexagon nut will not fit, and is commonly machined in brass. Brassland machines it from free-cutting brass CW614N (CuZn39Pb3) to the standard and to your drawing, as part of our brass nuts programme.

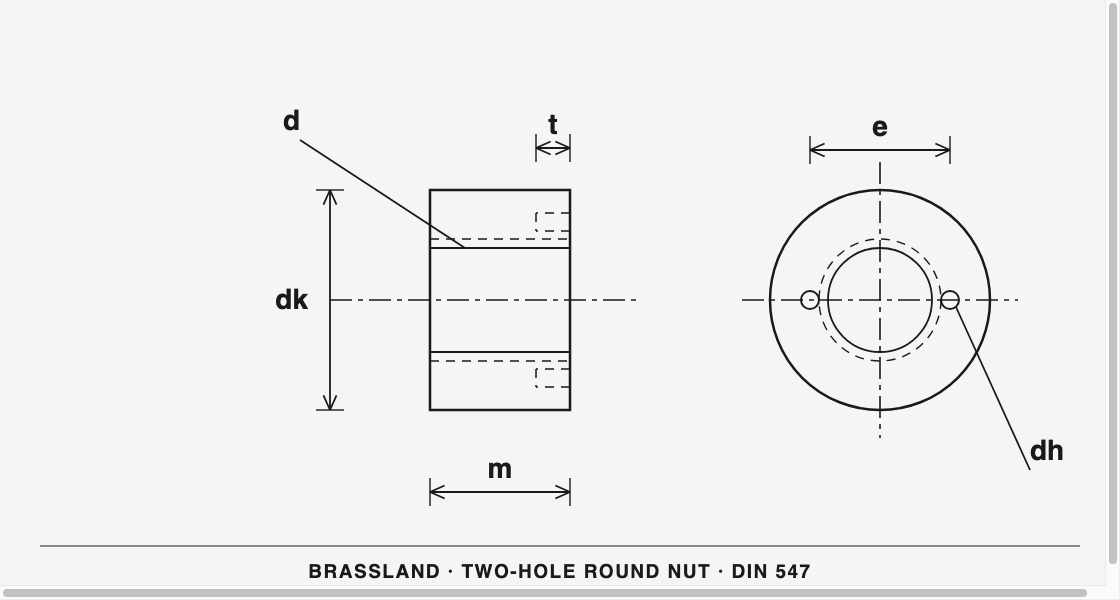

DIN 547 Brass Two-Hole Round Nut — dimensioned engineering drawing

DIN 547 — engineering drawing (Brassland).

Specification

Standard	DIN 547
Type	Round nut with two face holes (two-pin spanner)
Thread	M2–M10 (coarse)
Material	CW614N (CuZn39Pb3); lead-free CW724R on request
Certificate	EN 10204 3.1 per shipment; 3.2 on request

Datasheet — dimensions to DIN 547

Thread d	Outside Ø dk	Height m	Hole Ø dh	Hole PCD e	Hole depth t
M2	5.5	2	1.0	4	through
M2.5	7	2.2	1.2	5	—
M3	8	2.5	1.5	5.5	1.3–1.7
M4	10	3.5	1.5	7	1.8–2.2
M5	12	4.2	2.0	8	through
M6	14	5	2.5	10	2.8–3.2
M8	18	6.5	3.0	13	3.3–3.8
M10	22	8	3.5	15	3.8–4.3

Dimensions in mm to DIN 547. dk = outside diameter, m = height, dh = face-hole diameter on pitch circle e; the two holes are 180° apart. M2 and M5 holes are through-drilled; M2.5 hole depth on request. Coarse metric thread.

Applications

Typical applications include adjustable retention of bearings, bushes and collars on shafts and spindles, optical and instrument assemblies needing a flush circular nut, and valve and fitting trim. All parts are made to order, so size, thread, finish and certification are tailored to your specification.
