DIN 1816 Brass Cross-Hole Round Nut

Round nut with radial cross holes for a pin spanner — metric fine thread, turned in brass to standard and to your drawing.

Datasheet All Brass Nuts

Home / Products / Standard Parts / Brass Nuts / DIN 1816

A DIN 1816 nut (Kreuzlochmutter) is a round nut with radial holes drilled into its cylindrical edge, tightened with a pin spanner engaging from the side; it is used for adjustable retention on shafts and spindles; it has a metric fine thread. Brassland machines it from free-cutting brass CW614N (CuZn39Pb3) to the standard and to your drawing, as part of our brass nuts programme.

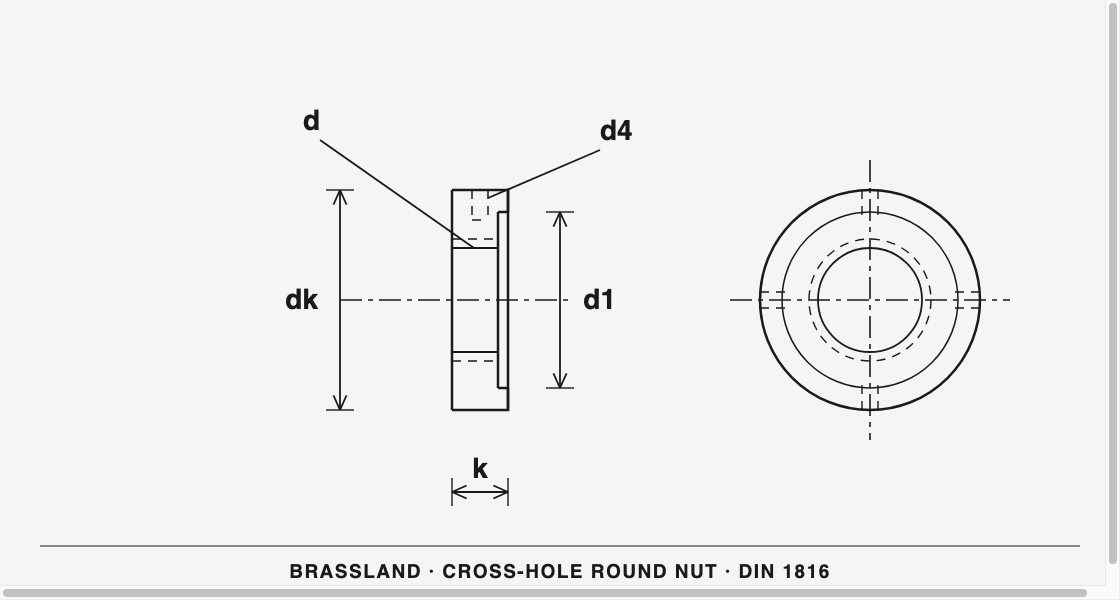

DIN 1816 Brass Cross-Hole Round Nut — dimensioned engineering drawing

DIN 1816 — engineering drawing (Brassland).

Specification

Standard	DIN 1816
Type	Round nut with radial cross holes (pin spanner)
Thread	M6×0.75–M48×1.5 (fine); larger on request
Material	CW614N (CuZn39Pb3), turned to order
Certificate	EN 10204 3.1 per shipment; 3.2 on request

Datasheet — dimensions to DIN 1816

Thread d	Outside Ø dk	Height k	Recess Ø d1	Face-hole Ø d4	Holes
M6×0.75	16	5	12	2.5	4
M8×1	20	5	16	2.5	4
M10×1	25	6	20	3	4
M12×1.5	28	6	23	3	4
M14×1.5	30	7	25	4	4
M16×1.5	32	7	27	4	4
M18×1.5	34	8	28	4	4
M20×1.5	36	8	30	4	4
M24×1.5	42	9	36	4	4
M30×1.5	50	10	43	5	4
M36×1.5	58	11	50	5	4
M42×1.5	68	12	60	6	6
M48×1.5	75	13	67	6	6

Dimensions in mm to DIN 1816. dk = outside diameter, k = height, d4 = cross-hole diameter; the number of holes rises from 4 to 6 (to 8 at the largest sizes). Metric fine thread. Catalogue stock is usually steel/stainless; Brassland turns these in brass to order.
