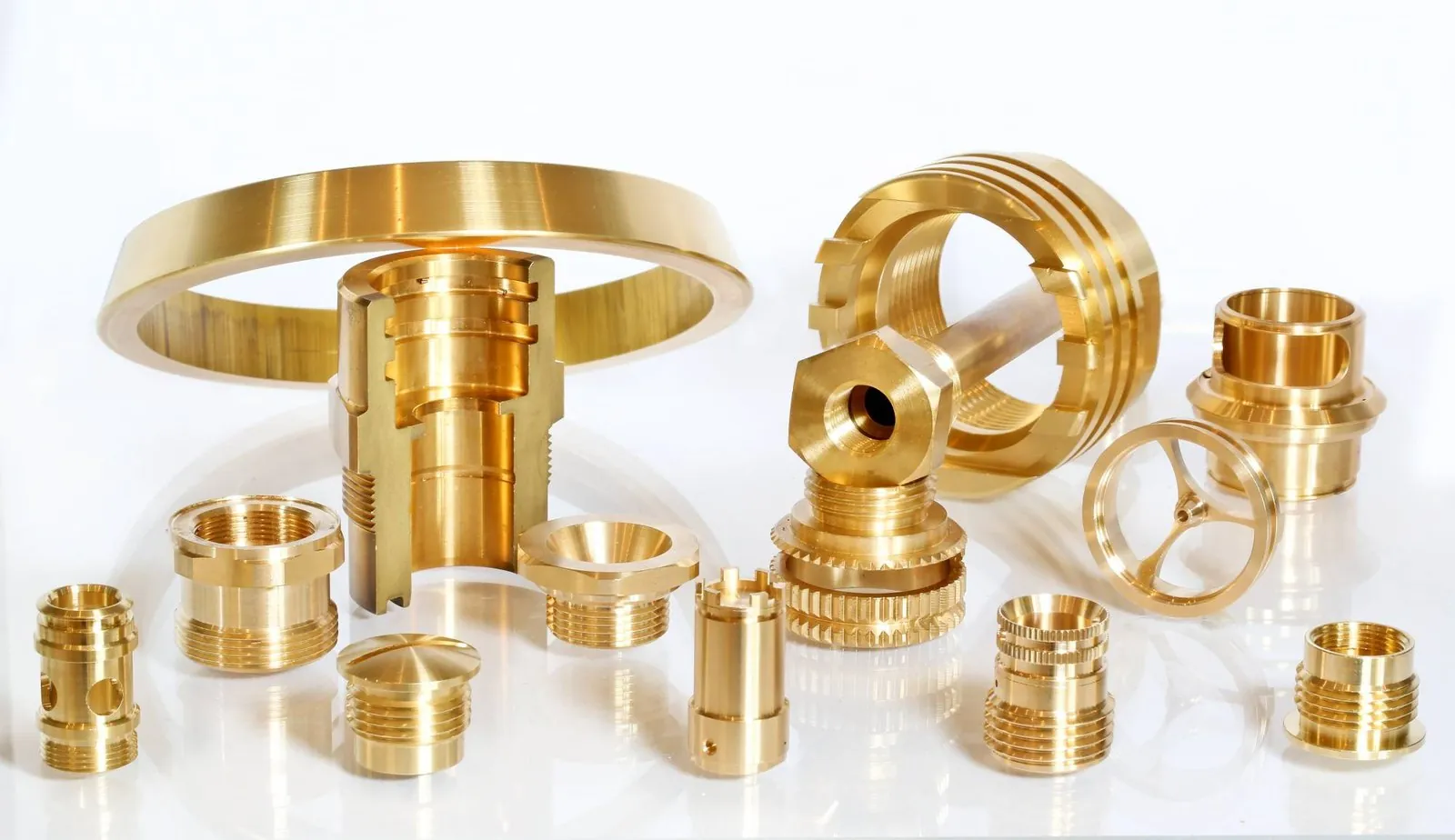

Precision brass gas and energy fittings machined by Brassland

Custom Per Drawing · Gas & Energy

Gas & Energy Fittings

Name: Custom Brass Gas & Energy Fittings
Brand: Brassland

Gas pipe fittings & adaptors, POL & cylinder connectors, meter connectors, and solar thermal fittings — machined to your 2D or 3D drawing in DVGW-approvable brass (approval is by component test).

Send Your Drawing View Component Types

Alloy compatibility

Brass for Gas Applications

Brass is the dominant material for gas fittings globally — it is compatible with natural gas (methane), LPG (propane/butane), and most inert and noble gases at low-to-medium pressures.

Brass is not suitable for ammonia-containing gases (stress-corrosion cracking risk) or high-pressure hydrogen (H₂ >1 MPa — hydrogen embrittlement risk in leaded alloys). We will advise if your specification requires a different material.

OK Compatible Gases

Natural gas (CH₄), LPG (propane, butane), nitrogen, compressed air, CO₂, argon, helium

⚠ Not Recommended

Ammonia (NH₃) — stress-corrosion cracking in brass. H₂ >1 MPa — hydrogen embrittlement risk. Acetylene — copper >70% forms explosive copper acetylide (use brass or use stainless)

DVGW Approval (Germany)

Deutsches Institut für Bautechnik gas approval for fittings. CW617N is DVGW-approvable for gas. Component must be tested — not just alloy.

Made in Jamnagar, India

Real parts. Made to your drawing.

A sample of the precision brass components we turn and mill every day — finished complete and inspected in-house, then shipped to OEM and Tier-1 customers worldwide.

Component Types

Brassland is a precision brass-component manufacturer in Jamnagar, India, supplying turned and milled gas and energy fittings to OEMs in 40+ countries. We machine gas pipe fittings and adaptors, POL and cylinder connectors, meter connectors, solar-thermal and biogas couplings and hydrogen-distribution fitting bodies — in BSP, NPT and metric threads — from CW617N brass and lead-free CW724R for hydrogen-compatible service. Every part is turned and milled to your drawing on Swiss-type and CNC machines (no casting) and inspected in-house; pressure/leak testing of samples is available, with type approval to EN 161 / EN 13611, DVGW or GAR (EU) 2016/426 the responsibility of the assembler. ISO 9001, ISO 14001 and ISO 45001 certified. Choosing the grade? See our industrial alloy guide →

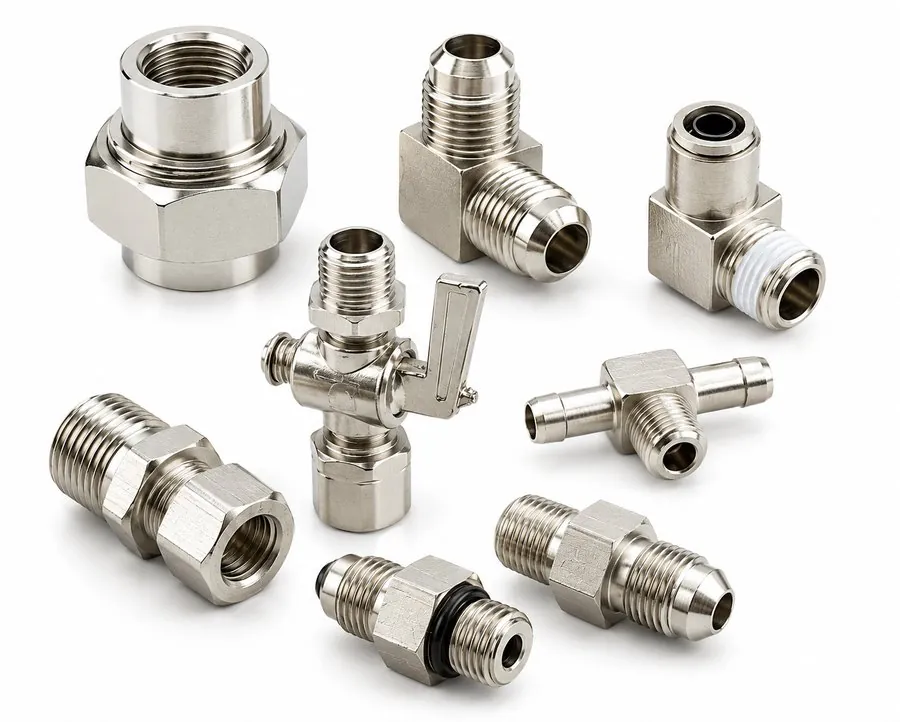

Brassland brass gas pipe fittings and adaptors — machined to drawing

Gas Pipe Fittings & Adaptors

CW617NDVGW-approvable

Unions, nipples, reducers, bushes, elbows, tees and thread adaptors for natural gas and LPG pipework — turned and milled to your drawing with BSP, metric or POL threads. Pressure tested on request.

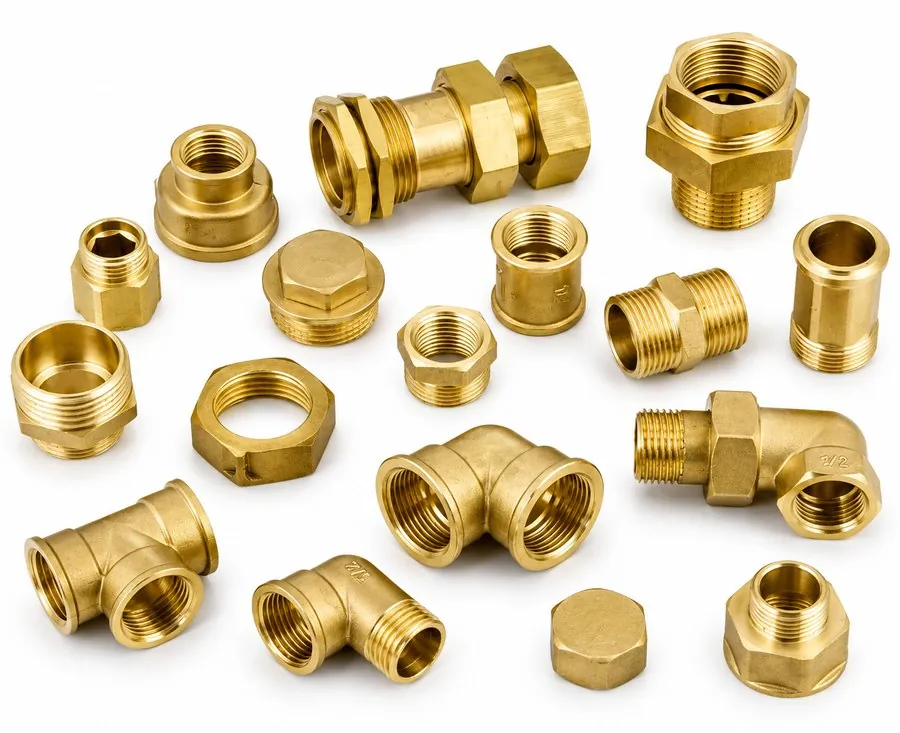

Natural Gas Meter Connectors

CW617NDVGW-approvable

Gas meter unions, compression fittings, flexible hose connectors, and union fitting bodies. Threaded connections to EN 1057, BSP, or metric. Machined for O-ring sealing.

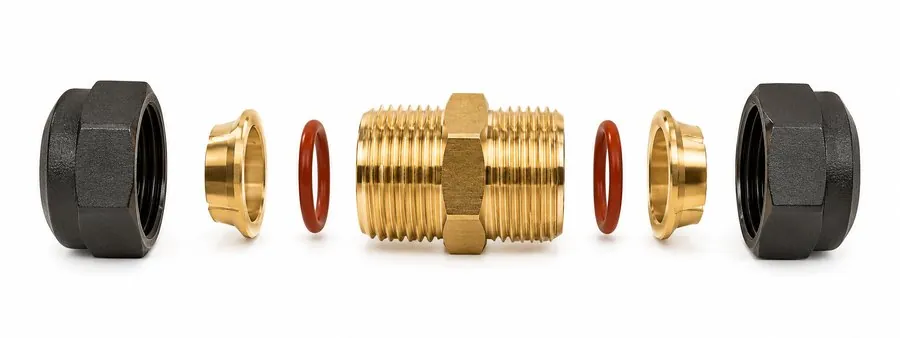

Solar Thermal Fittings

CW617N / CW602NHigh-temp rated

Solar collector manifold connections, expansion vessel fittings, and heat exchanger connectors for solar thermal systems. Rated for glycol-water mix at up to 200°C. DIN EN 12977 compatible.

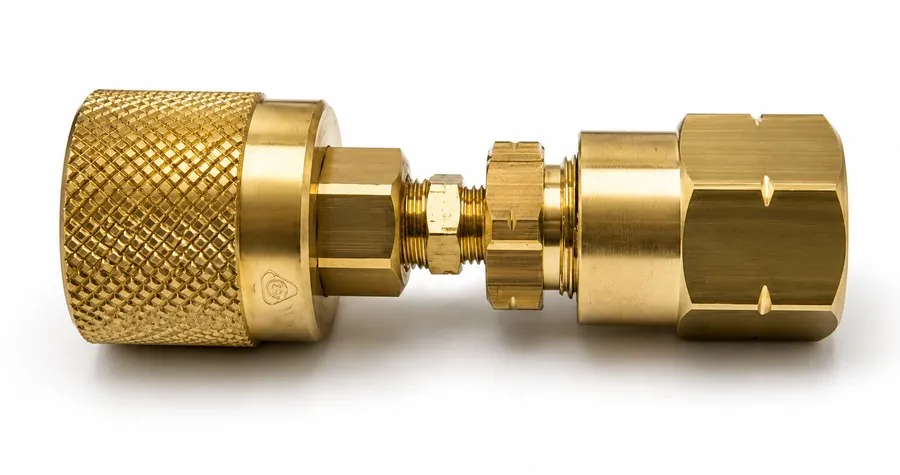

Brassland brass POL and cylinder connectors for LPG and propane — machined to drawing

POL & Cylinder Connectors

CW617NDVGW-approvable

POL and cylinder adaptors, LPG hose tails and nozzles, regulator inlet/outlet connectors, and quick-connect bodies for propane and butane systems. Machined to your drawing for gas-tight sealing.

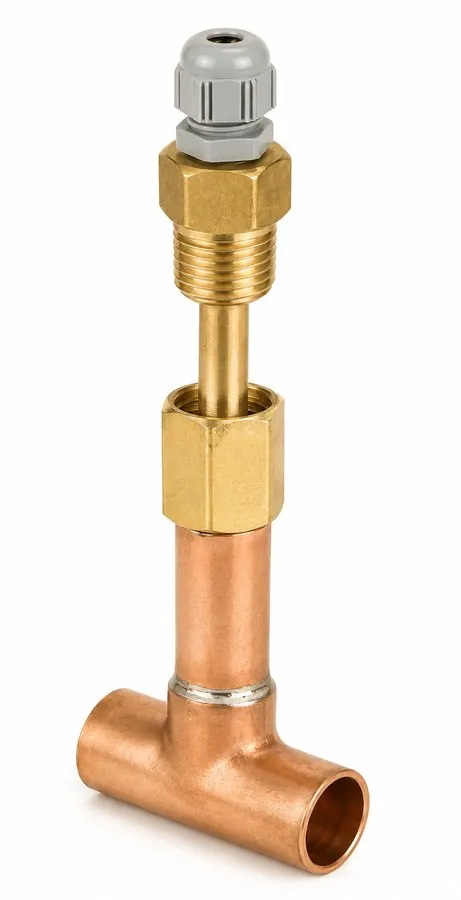

Brassland brass heat-pump and refrigerant fittings — machined to drawing

Heat Pump & Renewable Energy Fittings

CW617NRefrigerant compatible

Air-source and ground-source heat pump refrigerant fittings, charge ports, service-port fittings, and Schrader valve cores' brass bodies. Compatible with R-410A, R-32, and R-134a refrigerants. NOT compatible with ammonia-based refrigerants (R-717).

Alloy Specification for Gas & Energy

Application	Alloy	Key Advantage	Pressure Rating	Approval
Gas pipe fittings & adaptors	CW617N (CuZn40Pb2)	100% machinability, consistent bar stock	LP: ≤16 bar typical	DVGW-approvable
Natural gas meter unions	CW617N (CuZn40Pb2)	Standard for gas fittings globally	Medium pressure ≤5 bar	DVGW-approvable
Forged gas fitting bodies	CW617N or CW510L	Hot-forgeable, good strength	PN16–PN40 common	DVGW-approvable
Solar thermal manifold	CW617N (CuZn40Pb2)	High-temp glycol compatible	≤10 bar / 200°C	EN 12977
Refrigerant fittings (HFC)	CW617N (CuZn40Pb2)	HFC/HFO compatible, good machinability	High-side ≤40 bar	Per system standard
Ammonia / NH₃ systems	⚠ Brass NOT recommended — use stainless steel or carbon steel

From Our Shop Floor

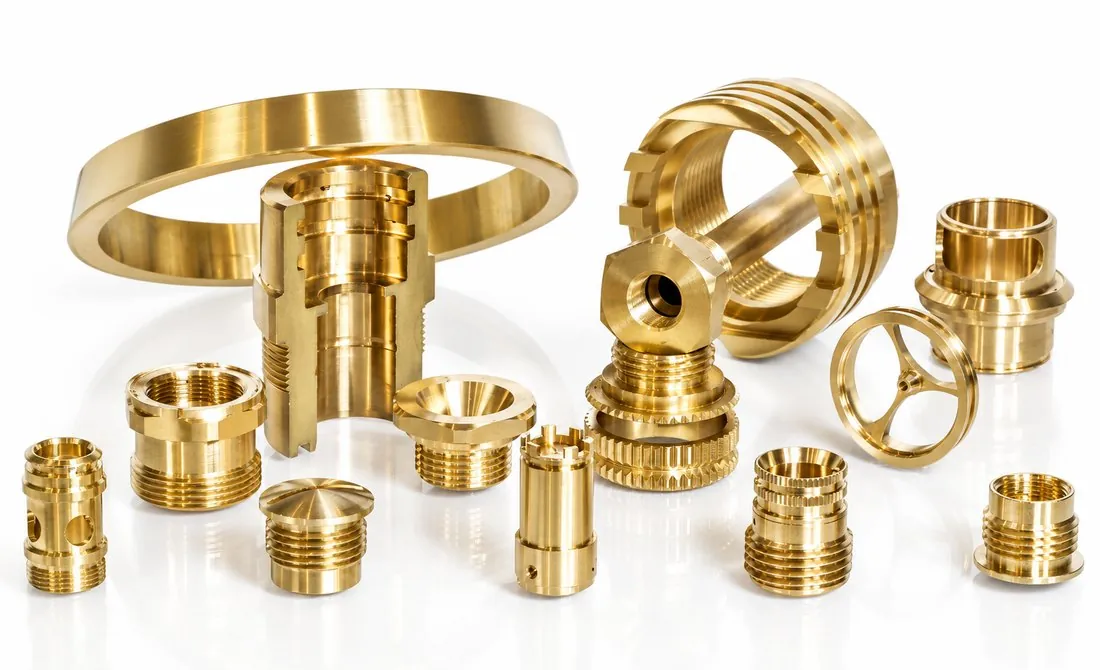

Precision brass gas fittings machined by Brassland — Precision Brass Fittings
Turned & milled to drawing

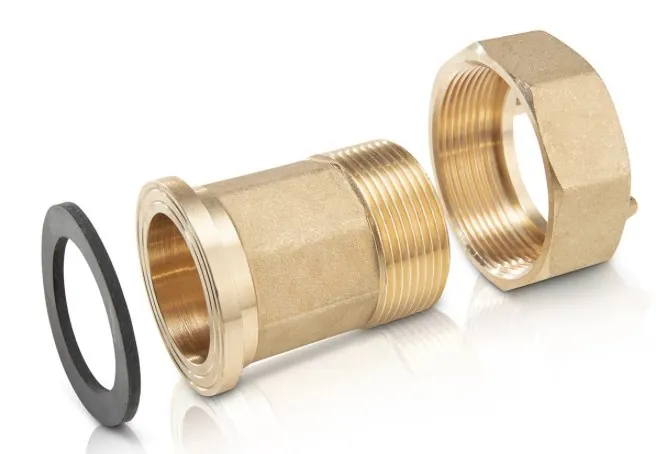

Brass union and connector fittings by Brassland — Union & Connector Fittings
Machined for O-ring sealing

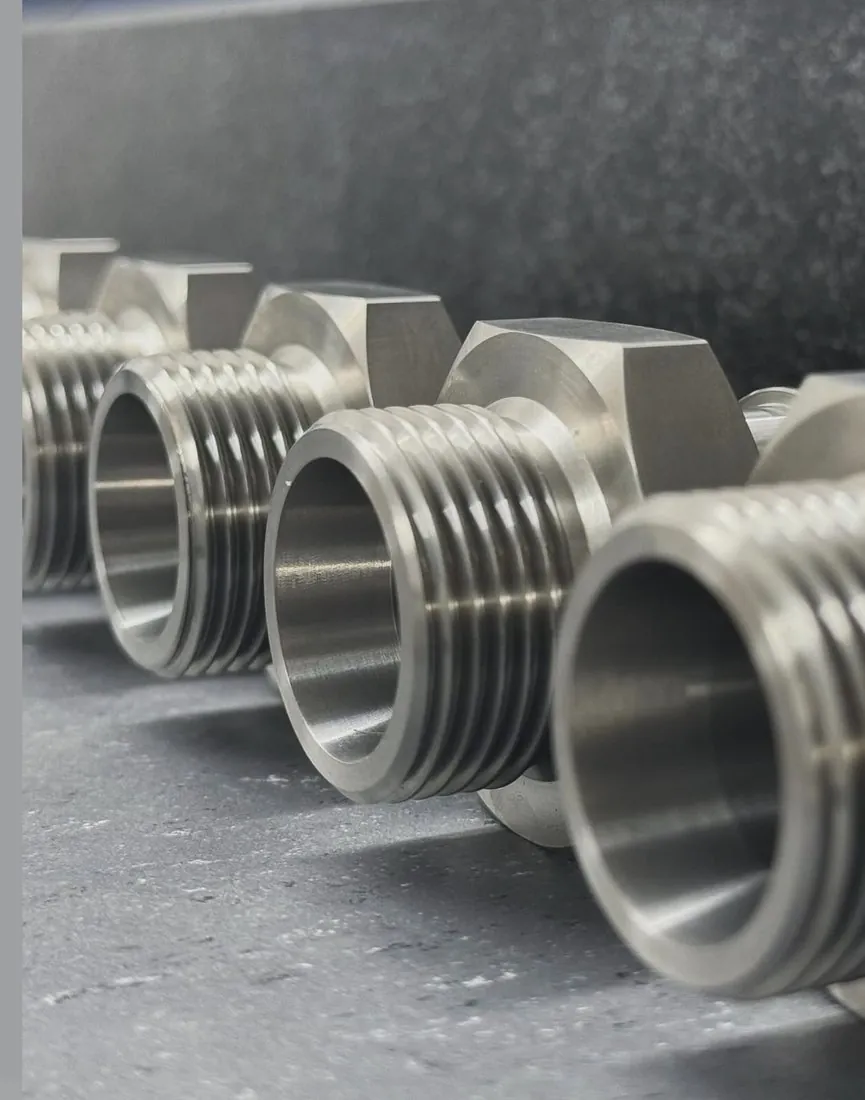

Machined fittings in production at Brassland — Fittings in Production
On our CNC lines

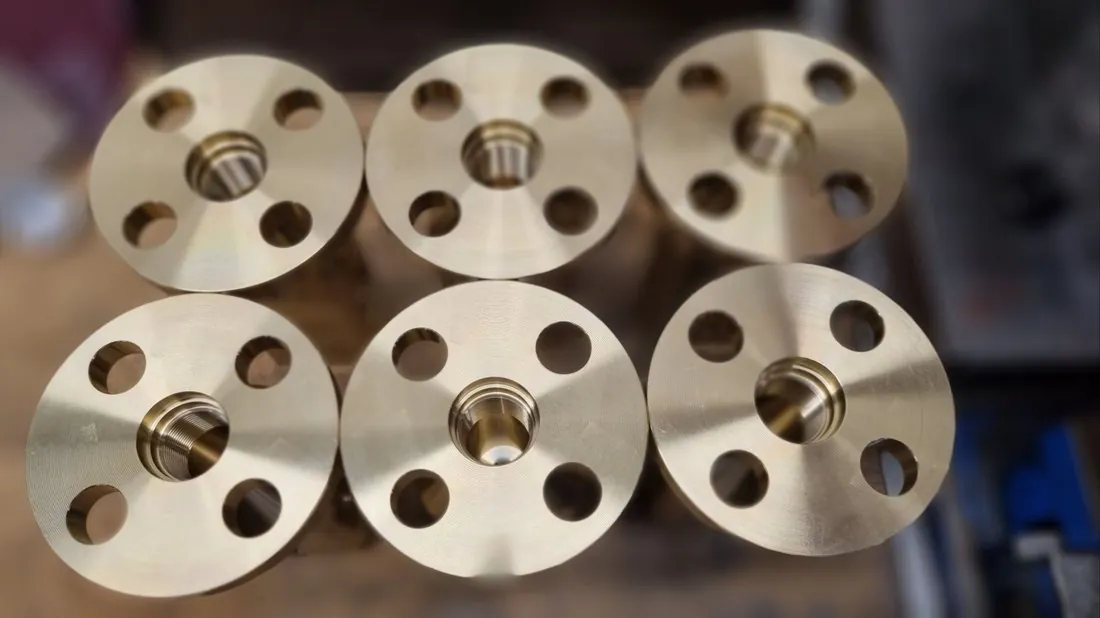

Machined brass flanges by Brassland — Flanged Connections
Turned complete

Custom per drawing

Send Your Gas or Energy Drawing

Include gas type, operating pressure, approval requirement (DVGW / CE), and volume. We'll respond within 24 hours.

Upload Drawing Energy Application Guide

Gas & Energy Fittings — Frequently Asked Questions

Are your brass alloys suitable for gas service?

Yes — CW617N is DVGW-approvable for natural gas and LPG. Brass is not suitable for ammonia or high-pressure hydrogen; we advise the right material for your gas and pressure.

Do you manufacture finished gas valves or regulators?

No — we machine gas fittings and component bodies to your drawing. DVGW/CE/PED certification, gas approval (granted by test on the finished part) and type testing are the buyer's or assembler's responsibility.

What gas fittings can you make to drawing?

Gas pipe fittings and adaptors, POL and cylinder connectors, meter connectors and solar-thermal fittings — turned and milled with BSP, metric or POL threads.

What documentation do you provide?

EN 10204 Type 3.1 mill certificates as standard (3.2 third-party witnessed on request), a Certificate of Conformity and dimensional inspection reports, plus RoHS and REACH declarations with commercial orders.

What is your minimum order quantity and lead time?

There is no strict MOQ — first orders typically start from around 1,000 pieces, and we support high-volume production for OEMs. Typical lead time is 3–5 weeks from approved drawing, with prototypes and samples sooner.

Standards & Compliance References

Specifications this product line is built to

Brassland manufactures to the published EN, ISO and ASTM specifications below. Mill certificates per EN 10204 Type 3.1 are supplied as standard; Type 3.2 (third-party witnessed) available on request. Open any link to verify the standard directly with the publishing body.

What we make & what we don’t certify. Brassland machines gas & energy fittings and component bodies to your drawing in DVGW-approvable brass — we do not manufacture finished valves or regulators. We are ISO 9001, ISO 14001 & ISO 45001 certified but do not hold product-specific gas approvals (DVGW, CE / PED, ANSI Z21). Gas approval is granted by test on the finished part — DVGW/CE/PED certification and type testing are the responsibility of the buyer or assembler placing the finished product on the market.

EN 12164 / 12165 / 12167

CEN — brass rod, forging stock, profiles

DIN — German Institute for Standardization

DIN 934, 906, 908, 910, 913–916, 16903 etc.

ISO 4032 / 8765 / 7045

International fastener & thread standards

ASTM B16 / B124 / B283 / B371

North American brass/copper specs

EU RoHS 2 — 2011/65/EU

Annex III Ex 6(c) valid to 30 Jun 2027

ECHA REACH SVHC

Article 33 disclosure documentation supplied

EN 549 / EN 13611

Materials & safety for gas appliances (reference)

PED 2014/68/EU

Pressure Equipment Directive (reference)

ISO 9001 · 14001 · 45001

Quality, environment & safety — Brassland certified

Brassland — Alloy Datasheets

CW617N, CW614N, CW602N, CW724R full data

Brassland — Standards Guide

Plain-English RoHS, REACH, DZR explainer

Brassland — Certifications

ISO 9001, RoHS, REACH compliance documents

Brassland — Compliance Hub

CMRT, CA Prop 65, SVHC declarations

Last reviewed: May 2026. All Brassland products are made to order — please confirm grade, surface finish, plating and packaging requirements at quotation stage. Standards listed above are referenced; production lots are released against the EN 10204 Type 3.1 inspection certificate accompanying each shipment.
