Brass Fittings & Components for Pneumatic & Hydraulic Systems

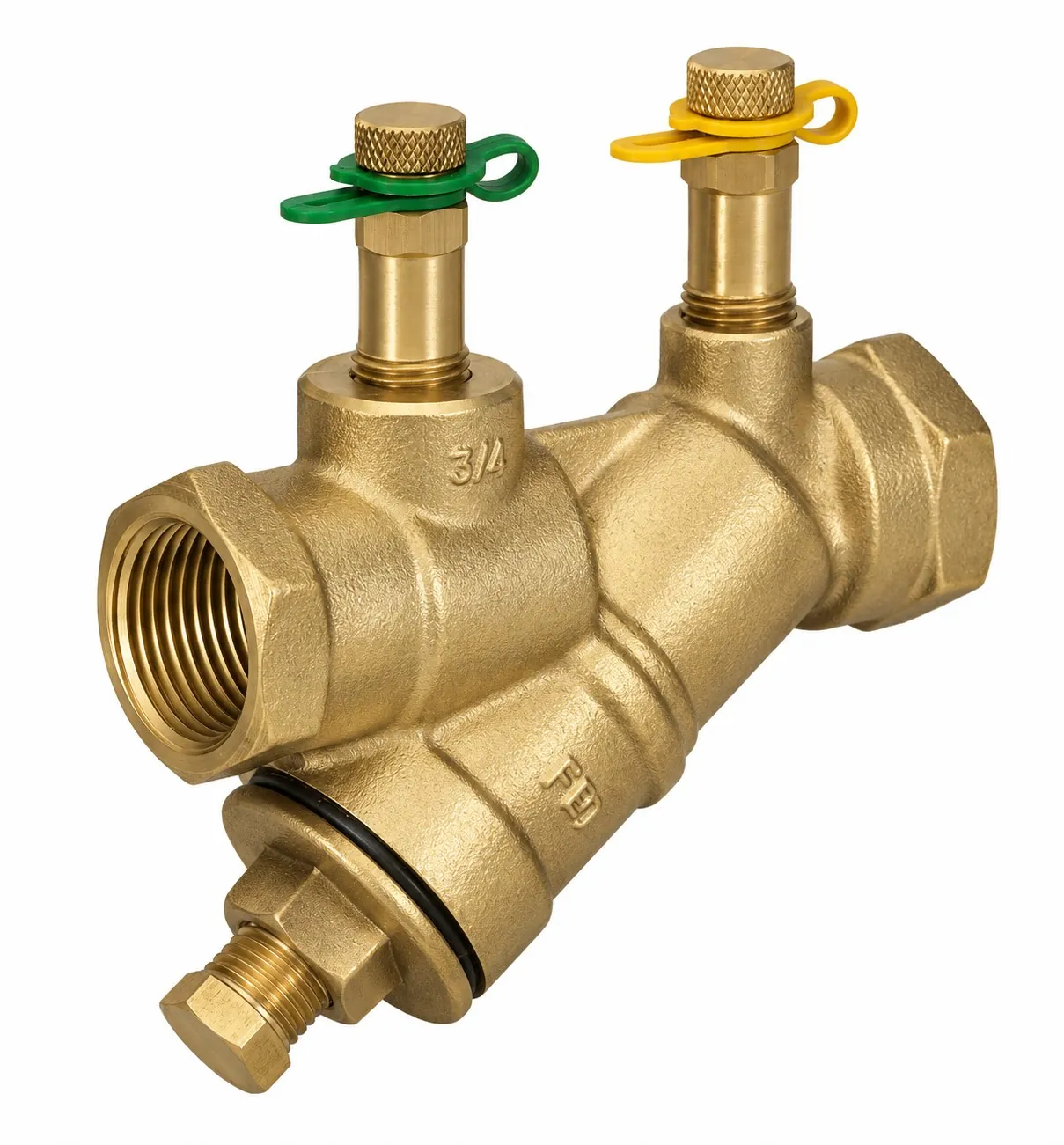

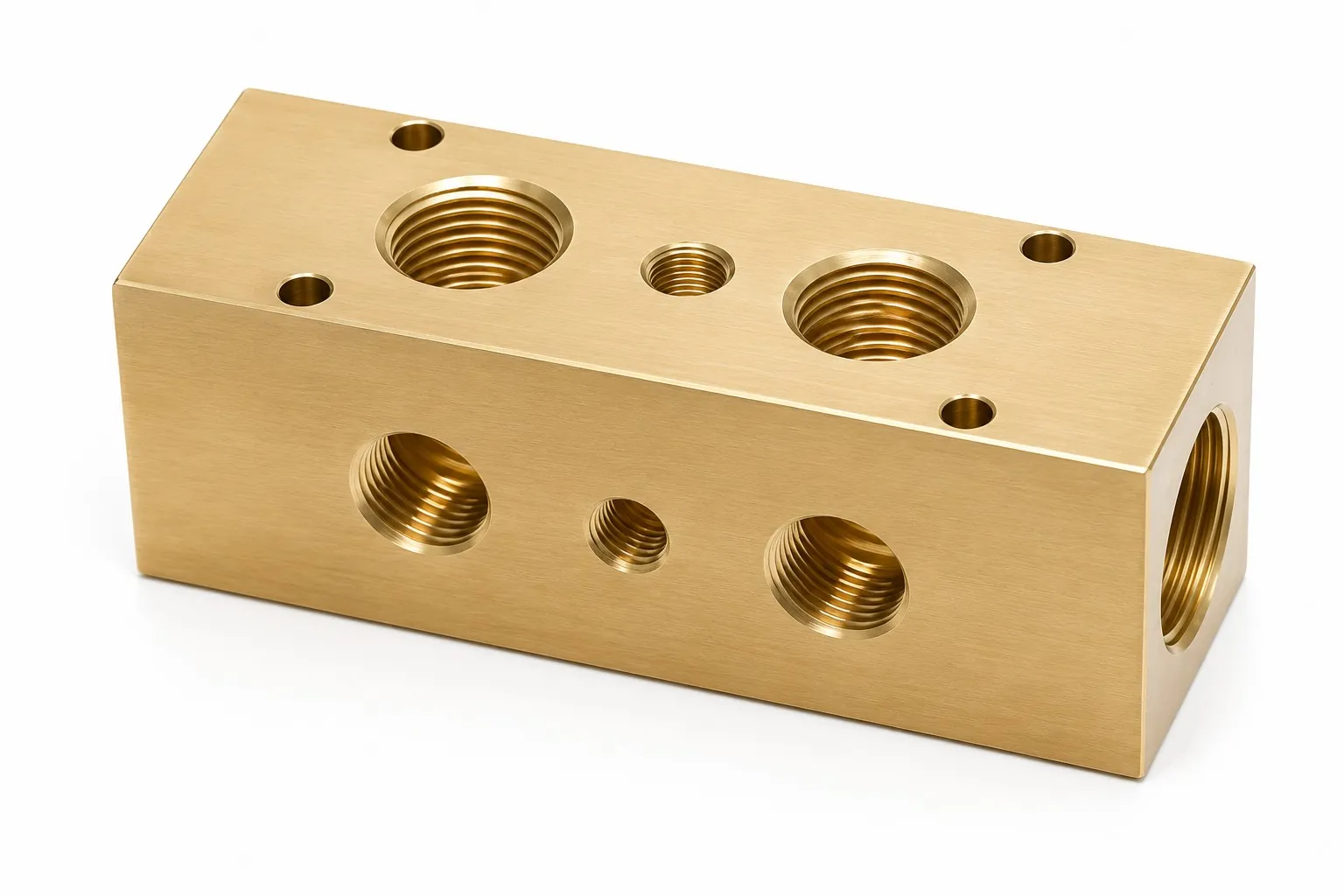

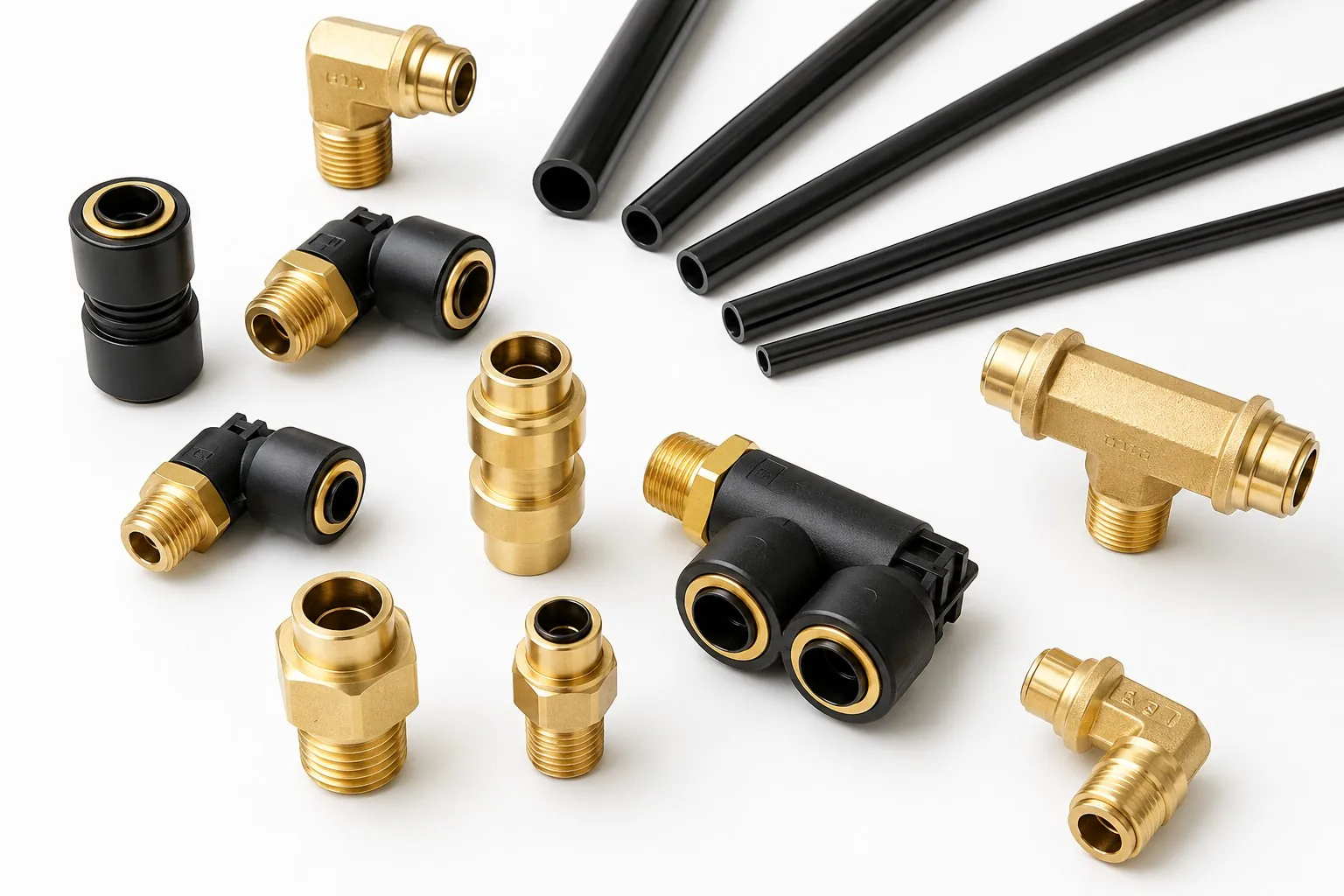

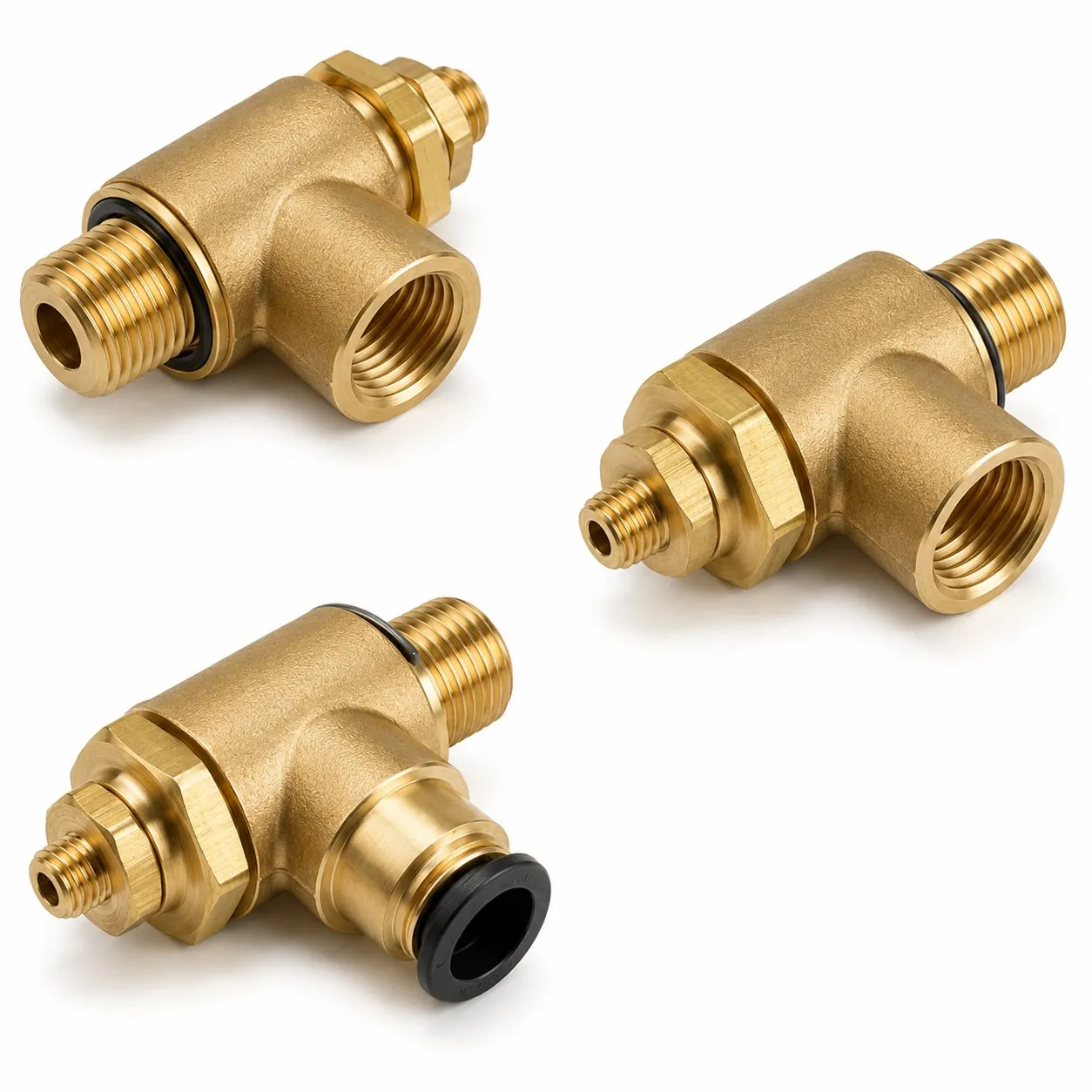

Connector and push-in bodies, manifold blocks, valve component bodies and seats, and flow-control fittings — turned and milled to your drawing in BSP, NPT, metric, JIC and SAE threads, to your specified pressure rating. We machine the brass components that go inside fluid-power assemblies, not finished valves.
Real parts. Made to your drawing.
A sample of the precision brass components we turn and mill every day — finished complete and inspected in-house, then shipped to OEM and Tier-1 customers worldwide.
Precision Brass Components We Machine
Brassland is a precision brass-component manufacturer in Jamnagar, India, supplying turned and milled parts to pneumatic and hydraulic (fluid-power) OEMs in 40+ countries. We machine the brass parts that go inside fittings, valves and manifolds — connector and push-in bodies, valve component bodies and seats, manifold blocks and flow-control bodies — from CW617N and CW614N free-machining brass, in BSP (ISO 228 / ISO 7), NPT, metric, JIC (SAE J514) and SAE ORB threads. Every part is made to your drawing on Swiss-type and CNC machines and inspected in-house — we machine the components, not finished valves. Choosing the grade? See our industrial alloy guide →
Thread Standards Available
We machine all common fluid fitting thread forms. Specify your required standard in the drawing or enquiry.
| Standard | Type | Common Sizes | Sealing Method | Application |
|---|---|---|---|---|
| BSP Parallel (BSPP / G) | ISO 228-1 | G1/8 – G2 | O-ring face seal or washer | Hydraulic, pneumatic (Europe/Asia) |
| BSP Taper (BSPT / R) | ISO 7-1 | R1/8 – R2 | Thread interference + sealant | Gas, plumbing, low-pressure fluid |
| NPT (National Pipe Taper) | ASME B1.20.1 | 1/8–2 NPT | Thread interference + PTFE tape | US/North American hydraulic/pneumatic |
| Metric (ISO 6149) | ISO 6149-1 | M8×1 – M52×2 | O-ring face seal | Hydraulic — preferred for leak-free |
| JIC 37° Flare | SAE J514 | -04 to -20 JIC | 37° cone metal-to-metal | High-pressure hydraulic (US/global) |
| SAE ORB | SAE J1926 | -04 to -20 SAE | O-ring boss | Hydraulic ports |
Where These Components Are Used
Our turned and milled brass parts go into fluid-power equipment built by OEMs worldwide — anywhere compressed air or hydraulic fluid is routed, controlled or sealed.
Related industries: HVAC/R · Gas & Energy · Plumbing & Water · Instrumentation
Send Your Pneumatic or Hydraulic Drawing
Include pressure rating, thread standard, sealing method, and volume. We'll quote within 24 hours with material recommendation and unit price.
