From Our Shop Floor

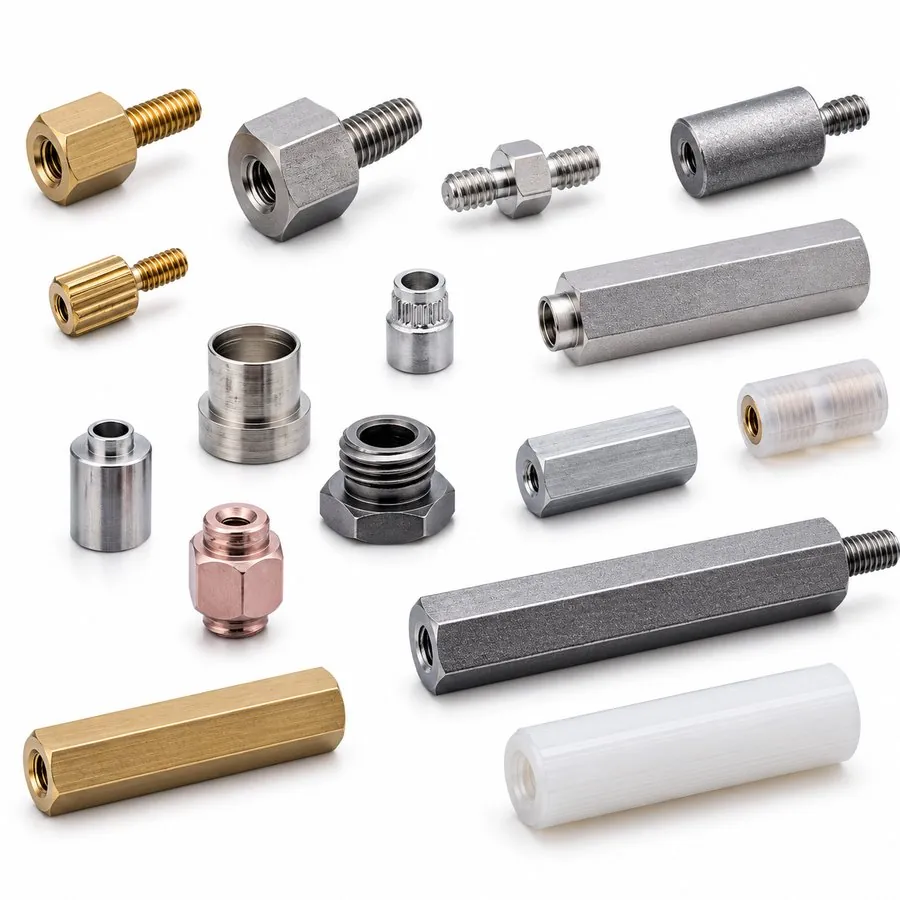

Standoffs & Spacers
PCB mounting hardware

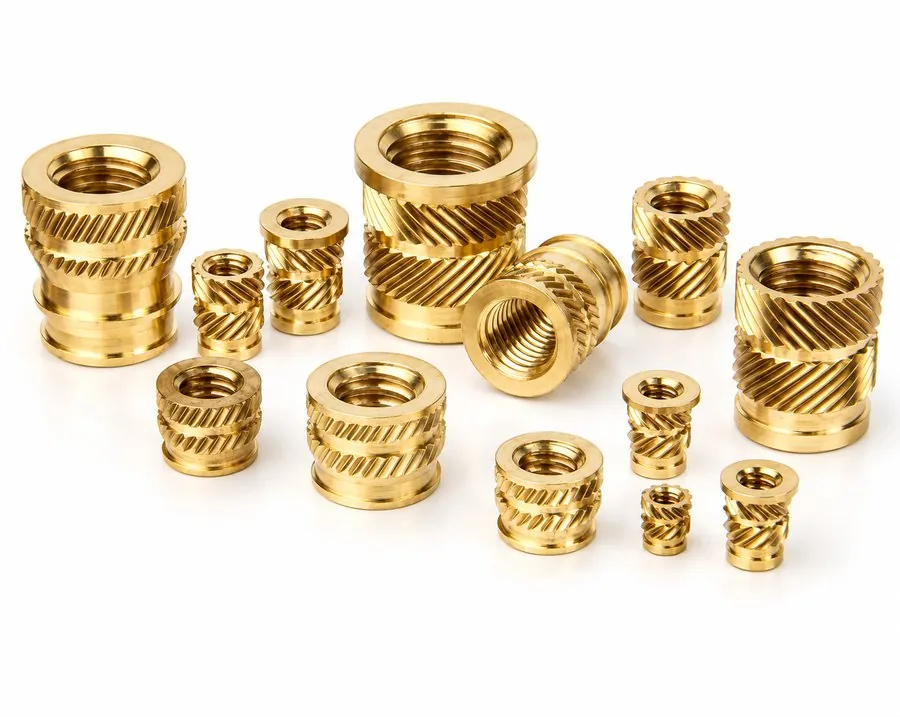

Threaded Inserts
Heat-set & press-fit

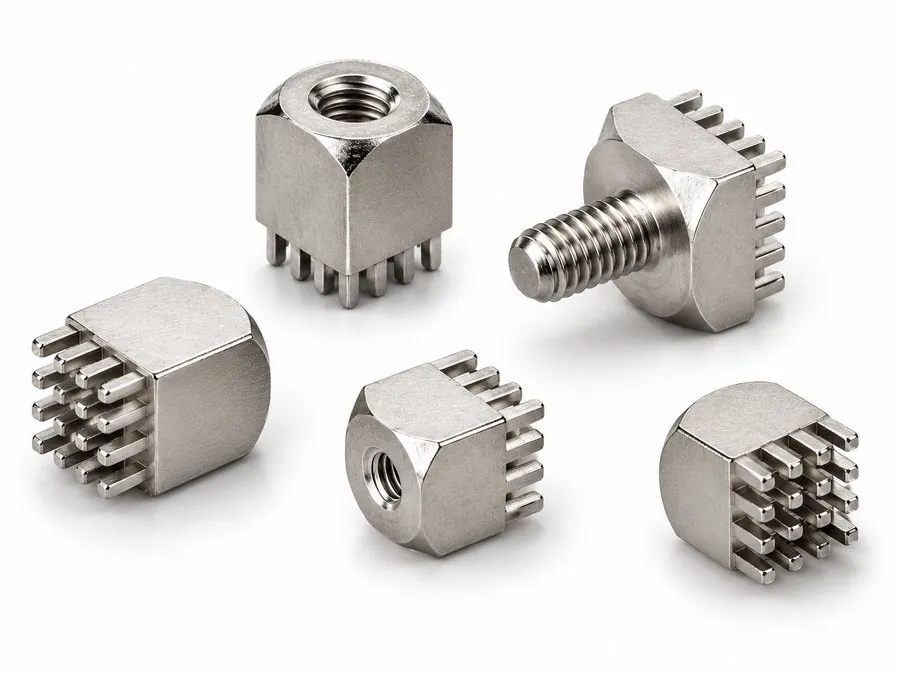

PCB Press-Fit Terminals
Solder & press-fit pins

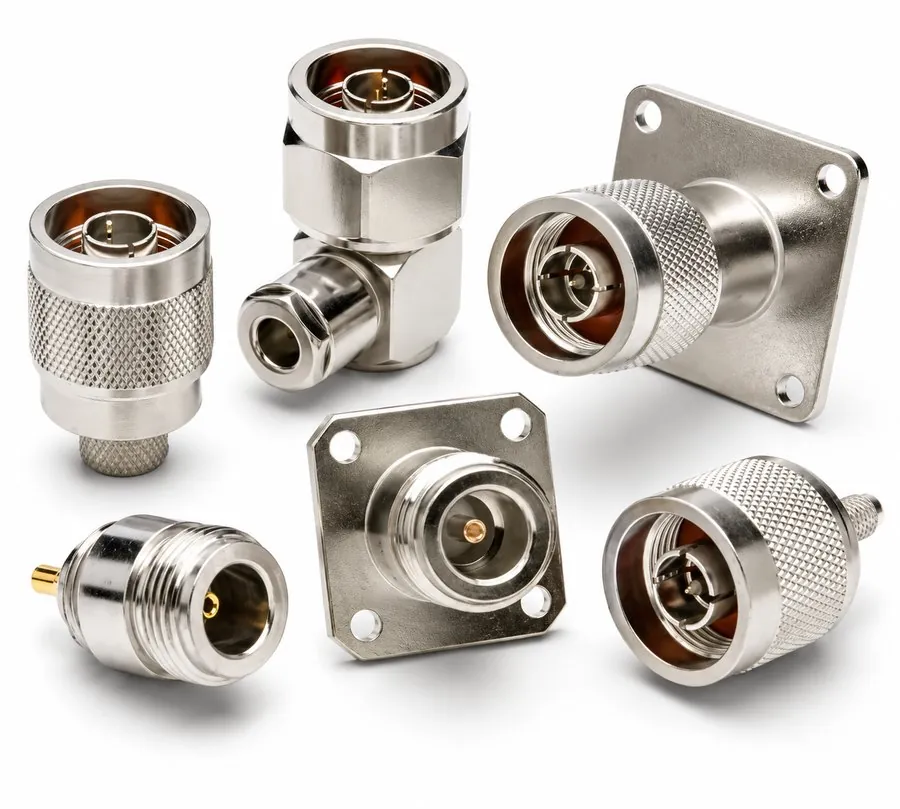

RF / Coaxial Connector Bodies
SMA, BNC, N-type
Electronics & PCB Assembly
Hex standoffs, threaded inserts, terminal pins, press-fit terminals, and precision turned connectors — machined in brass for machinability and corrosion resistance, or in copper (C11000) where high conductivity is required.
A sample of the precision brass components we turn and mill every day — finished complete and inspected in-house, then shipped to OEM and Tier-1 customers worldwide.
All parts made to your drawings. Email info [at] brassland [dot] com to request a quote.
Brassland is a precision brass-component manufacturer in Jamnagar, India, supplying turned and milled PCB and enclosure hardware to electronics OEMs in 40+ countries. We machine hex standoffs (M2–M6), threaded inserts for plastic enclosures, terminal and press-fit pins, RF and connector bodies, pillars and ferrules — held to about ±0.02 mm on Swiss CNC — from CW614N free-machining brass for press-in parts and lead-free CW724R for RoHS-critical EEE, with tin, nickel or gold plating. Every part is made to your drawing and inspected in-house under our ISO 9001, ISO 14001 and ISO 45001 systems. Choosing the grade? See our electrical alloy guide →
Male-female, female-female, and male-male hex standoffs for PCB mounting. M2, M2.5, M3, M4, M5, M6 thread range. Custom lengths.
Heat-set, press-fit, and knurled brass inserts for PCB enclosures and electronic housings moulded in ABS, PC, nylon.
Precision turned brass terminal pins and contact elements with gold, silver, or tin plating for low-resistance contact surfaces.
Turned brass press-fit terminals and solder pins for direct board mounting — eliminating soldering on through-hole connections. Tin or gold plated.
Precision machined brass connector bodies, shells, and coupling rings for RF/microwave connectors — machined to your drawing for SMA, BNC and N-type designs.
Solid brass threaded pillars and cable ferrules for terminal blocks, busbars, and earthing connections.
Material matched to the job — machinability, conductivity, and reliable plated contacts.
Brass cuts cleanly for fine threads, knurls and small diameters — economical for high-volume PCB hardware.
C11000 copper for current-carrying contacts and terminals; brass for structural standoffs and housings.
Accepts tin, nickel, silver and gold plating for low-resistance contacts, corrosion protection and shelf life.
Tight tolerances held on Swiss turning — essential for press-fit, connector and contact-fit reliability.
From Our Shop Floor
Certified brass / copper rod to EN 12164 / 12166, XRF-verified on every heat before production.
Pins, standoffs and inserts turned complete — threading, knurling and parting in a single cycle.
Tin, nickel, silver or gold applied to your specification via qualified plating partners.
Thread gauging, optical / CMM measurement and 100% checks on critical dimensions before dispatch.
Standard production parameters — non-standard requirements always welcome.
| Parameter | Standard Range | Notes |
|---|---|---|
| Thread sizes | M2 – M12 · #2-56 – #10 UNC | Metric & unified; custom pitch available |
| Diameter range | Ø2 – Ø32 mm | Swiss turning for small precision parts |
| Tolerance | ±0.01 – ±0.05 mm by process | Swiss tighter; CNC IT6–IT8 |
| Surface finish | Ra 0.4 – 1.6 µm | Finer on request |
| Plating | Tin · Nickel · Silver · Gold | To your spec, via qualified platers |
| Materials | CW617N · CW614N brass · C11000 copper | Matched to the part's function |
| Compliance | RoHS 2 · REACH | Declarations supplied with order |
| Minimum order | No strict MOQ | First orders typically from ~1,000 pcs |
| Lead time | 3 – 5 weeks | From approved drawing; samples sooner |
What buyers ask an electronics brass parts supplier before sending an RFQ — capability, order size, lead time, documentation and shipping terms, answered in one place.
Brassland has machined precision brass components in Jamnagar, Gujarat since 2000. Today around 230 people work across a 60,000+ sq ft plant running 79+ CNC machines, including 28+ Swiss-type sliding-head lathes (Tsugami and Star), and we ship to customers in more than 40 countries as a Star Export House recognised by the Government of India. Turning, milling and inspection are done in-house; where a part needs a forged blank we forge through qualified partner forges and finish-machine it here. We supply components — standoffs, inserts, pins, contacts and connector bodies — made to your drawing, not finished assemblies.
Swiss-type bar work Ø2–32 mm and CNC turning to Ø150 mm. Tolerances to ±0.005 mm on Swiss-turned diameters, typically ±0.01 mm on milled features.
No strict MOQ. First orders typically start from around 1,000 pieces, with prototypes and samples run sooner. High-volume OEM programmes are supported.
3–5 weeks from an approved drawing, prototypes sooner. Quotations typically come back within 24 hours of receiving a drawing or a sample part.
EN 10204 3.1 mill certificate (3.2 third-party witnessed on request), a Certificate of Conformity and a dimensional inspection report.
| Sourcing Question | Answer | Notes |
|---|---|---|
| Quotation turnaround | Typically within 24 hours | From a drawing, sample part or existing part number |
| Minimum order quantity | No strict MOQ | First orders typically from ~1,000 pcs; high-volume OEM supported |
| Prototypes & samples | Run ahead of series | Fit and test before the balance of the order is released |
| Production lead time | 3 – 5 weeks | From approved drawing |
| Certifications | ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018 | Certified by DQS |
| Compliance | RoHS · REACH | SVHC disclosure on request |
| Documents with each shipment | EN 10204 3.1 · CoC · inspection report | Type 3.2 (third-party witnessed) on request |
| Incoterms 2020 | DDP · FOB · CIF | EXW and DAP on request |
| Ports of loading | Mundra · Pipavav · Kandla · Nhava Sheva | Gujarat ports, plus Nhava Sheva near Mumbai |
| HS codes | 7415 · 7412 · 7419 | Correct heading confirmed per part at quotation |
| Export reach | 40+ countries | Star Export House recognised by the Government of India |
Send a drawing, a sample part or an existing part number and you will get price, lead time, the alloy we would recommend and the documentation package that ships with it — usually within 24 hours.
Request a Quote →RF connector bodies, antenna parts, rack and patch-panel hardware.
Terminal pins, standoffs and inserts for PLCs, drives and control panels.
Precision turned contacts, bushings and housings for measurement devices.
High-volume standoffs, threaded inserts and fasteners for moulded housings.
Connector and sensor hardware in ELV-compliant alloys.
Threaded pillars, heat-path hardware and driver-board mounting parts.
Material choice depends on the part's function — we'll advise on the right grade.
General-purpose grade for standoffs, pillars and housings. Excellent machinability and good corrosion resistance.
Highest machinability for small, intricate precision parts — terminal pins, press-fit terminals and connector details.
Electrolytic-tough-pitch copper (100% IACS) for current-carrying contacts, busbar tabs and grounding parts. RoHS 2 — no exemption needed.
Other Brassland components for electrical & electronic assemblies.
Brassland manufactures to the published EN, ISO and ASTM specifications below. Mill certificates per EN 10204 Type 3.1 are supplied as standard; Type 3.2 (third-party witnessed) available on request. Open any link to verify the standard directly with the publishing body.
Last reviewed: May 2026. All Brassland products are made to order — please confirm grade, surface finish, plating and packaging requirements at quotation stage. Standards listed above are referenced; production lots are released against the EN 10204 Type 3.1 inspection certificate accompanying each shipment.
