DIN 1804 Brass Slotted Round Nut

Slotted round nut for a hook (C-) spanner — turned in brass to standard and to your drawing.

Home / Products / Standard Parts / Brass Nuts / DIN 1804

A DIN 1804 nut is a slotted round nut (Nutmutter) with slots cut into its outer edge for a hook (C-) spanner, used to locate, adjust and retain components on shafts; it has a metric fine thread. Brassland machines it from free-cutting brass CW614N (CuZn39Pb3) to the standard and to your drawing, as part of our brass nuts programme.

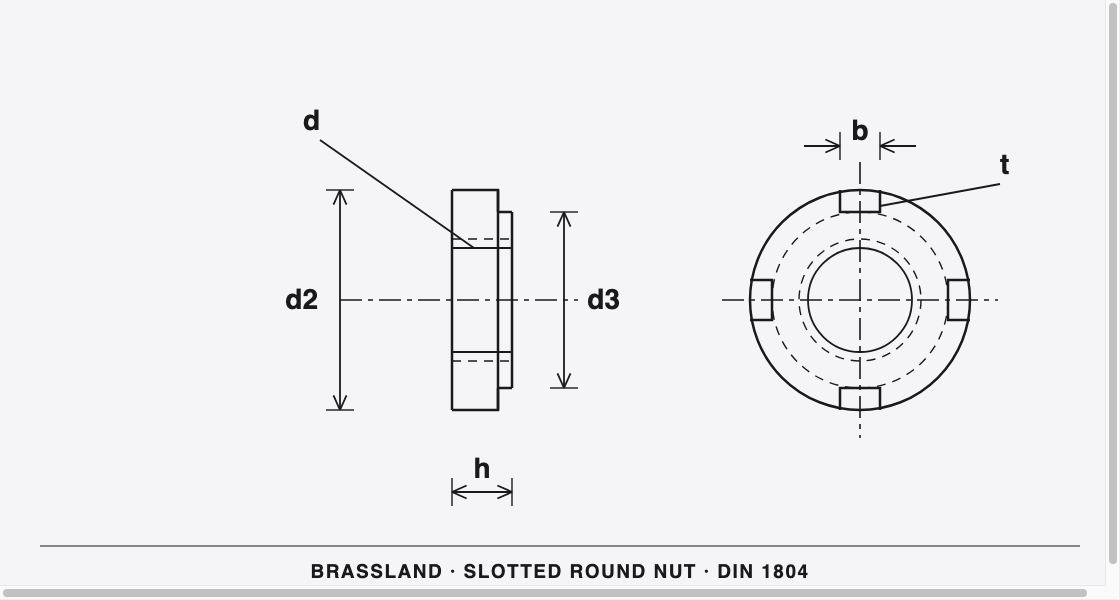

DIN 1804 Brass Slotted Round Nut — dimensioned engineering drawing

DIN 1804 — engineering drawing (Brassland).

Specification

Standard	DIN 1804
Type	Slotted round nut for a hook (C-) spanner
Thread	M6×0.75–M48×1.5 (fine); to M200 on request
Material	CW614N (CuZn39Pb3), turned to order
Certificate	EN 10204 3.1 per shipment; 3.2 on request

Datasheet — dimensions to DIN 1804

Thread d	Outside Ø d2	Height h	Collar Ø d3	Slot width b	Slot depth t	Slots
M6×0.75	16	5	12	4	1.5	4
M8×1	20	5	16	4	1.5	4
M10×1	25	6	20	5	2	4
M12×1.5	28	6	23	5	2	4
M14×1.5	30	7	25	5	2	4
M16×1.5	32	7	27	5	2	4
M18×1.5	34	8	28	6	2.5	4
M20×1.5	36	8	30	6	2.5	4
M24×1.5	42	9	36	6	2.5	4
M30×1.5	50	10	43	7	3	4
M36×1.5	58	11	50	8	3.5	4
M42×1.5	62	12	54	8	3.5	4
M48×1.5	75	13	67	8	3.5	6

Dimensions in mm to DIN 1804. d2 = outside diameter, h = height, d3 = collar diameter, b = slot width, t = slot depth; the number of slots rises with size. Metric fine thread; sizes to M200×3 on request. Catalogue stock is usually steel/stainless — Brassland turns these in brass to order.

Applications

Typical applications include bearing and shaft retention, adjustable spindle and roller mounts, and machine and fixture build where a slim round nut is set with a hook spanner. All parts are made to order, so size, thread, finish and certification are tailored to your specification.

Product

Brass Nuts Catalogue

All DIN/ISO nut types.

View →Material

CW614N (CuZn39Pb3)

Standard free-cutting brass.

View →Material

CW724R Lead-Free

RoHS / potable option.

View →Industry

Instrumentation

Precision adjustable parts.

View →Industry

Plumbing & Water

Tap & cartridge parts.

View →Guide

Thread Standards

Metric / BSP / pipe threads.

View →

How it works

Send a drawing or sample.
Quote in 24 hours.

Give the standard, thread and quantity. We are a brass turned-parts manufacturer in Jamnagar, India, exporting to 40+ countries.

Get a Quote →Contact Us

Frequently asked questions

What tool tightens a DIN 1804 nut?

A hook (C-) spanner that engages the slots in the nut's outer edge.

What thread does DIN 1804 use?

Metric fine pitch — e.g. M20×1.5. The standard runs from M6×0.75 up to M200×3.

Can a DIN 1804 nut be made in brass?

Yes — turned to order in free-cutting brass CW614N; catalogue stock is usually steel or stainless, but brass suits non-magnetic and corrosion-sensitive uses.

What is the difference between DIN 1804 and DIN 1816?

Both are round nuts; DIN 1804 has slots in its edge for a hook spanner, while DIN 1816 has radial holes in its edge for a pin spanner.
