DIN 909 Brass Hex-Head Taper Plug

Hexagon-head screw plug, taper (self-sealing) thread — turned in brass to standard and to your drawing.

DatasheetAll Screw Plugs

Home / Products / Standard Parts / Screw Plugs / DIN 909

A DIN 909 screw plug is a hexagon-head sealing plug with a taper (conical) thread that seals on the thread itself — the external-hex counterpart of the socket-drive DIN 906 — used to close oil, hydraulic and pneumatic ports where a spanner gives higher tightening torque. Brassland machines it from free-cutting brass CW614N (CuZn39Pb3) to the standard and to your drawing, as part of our screw plugs programme.

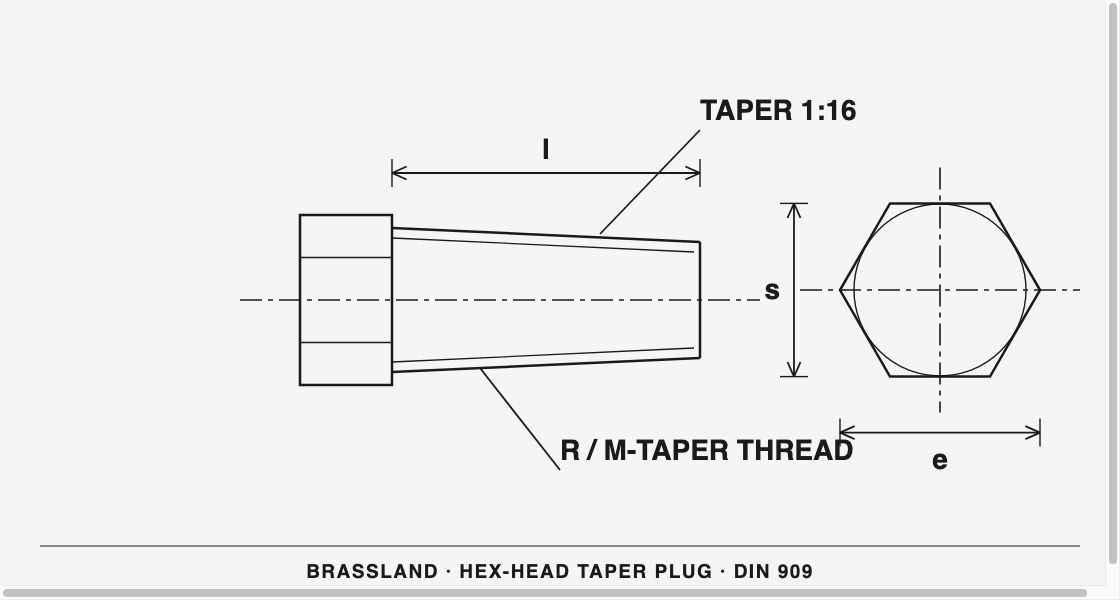

DIN 909 Brass Hex-Head Taper Plug — dimensioned engineering drawing

DIN 909 — engineering drawing (Brassland).

Specification

StandardDIN 909
TypeHexagon-head screw plug, taper (self-sealing) thread
ThreadR 1/8–R 1½ (DIN 3858) & metric taper M10×1–M48 (DIN 158)
MaterialCW614N (CuZn39Pb3); CW617N on request
CertificateEN 10204 3.1 per shipment; 3.2 on request

Datasheet — taper pipe thread R (DIN 3858)

ThreadHead A/F sLength lAcross-corners e
R 1/8712.57.66
R 1/49159.76
R 3/8101610.89
R 1/2131714.20
R 3/4172018.72
R 1192220.88
R 1 1/4243026.17
R 1 1/2303532.95

Datasheet — metric taper thread (DIN 158)

ThreadHead A/F sLength lAcross-corners e
M10×1712.57.66
M12×1.57157.66
M14×1.59159.76
M16×1.5101610.89
M18×1.5101610.89
M20×1.5131714.20
M22×1.5131714.20
M24×1.5172018.72
M27×2172018.72
M30×2192220.88
M33×2192220.88
M36×2242726.17
M42×2243026.17
M48×2303532.95

Dimensions in mm to DIN 909. The conical thread seals without a ring (a sealant may be added). Head width across flats s shown to DIN ISO 272 (older DIN 475-1 widths differ for some sizes). DIN 909 is the hex-head counterpart of the socket DIN 906.
