DIN 7604 Brass Screw Plug (Light Type)

Hexagon-head screw plug, light type, cylindrical thread — turned in brass to standard and to your drawing.

Home / Products / Standard Parts / Screw Plugs / DIN 7604

A DIN 7604 screw plug is a light-type hexagon-head sealing plug with a cylindrical (parallel) thread, sealed with a DIN 7603 ring under the head; it is a lower-profile, lighter closure than the heavier DIN 910, in a short-spigot (Form A) or long-spigot (Form C) version. Brassland machines it from free-cutting brass CW614N (CuZn39Pb3) to the standard and to your drawing, as part of our screw plugs programme.

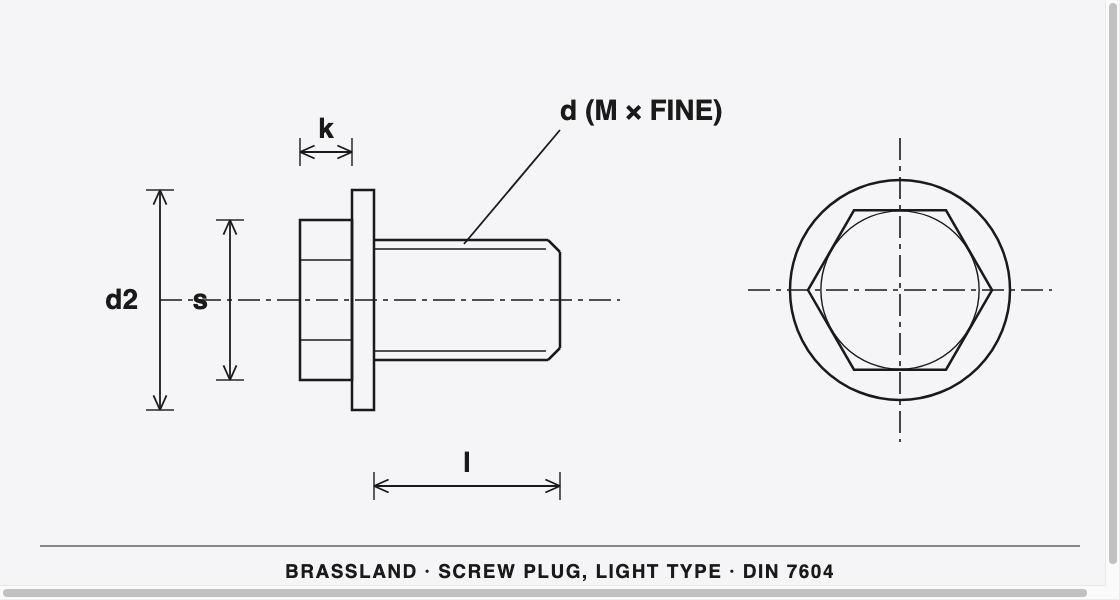

DIN 7604 Brass Screw Plug (Light Type) — dimensioned engineering drawing

DIN 7604 — engineering drawing (Brassland).

Specification

Standard	DIN 7604
Type	Hexagon-head screw plug, light type, cylindrical thread
Thread	Metric fine M8×1–M52×1.5 (Form A short / Form C long spigot)
Material	CW614N (CuZn39Pb3); CW617N on request
Certificate	EN 10204 3.1 per shipment; 3.2 on request

Datasheet — Form A, short spigot (metric fine)

Thread	Collar Ø d2	Head A/F s	Head height k	Length l
M10×1	14	14	4	10.5
M12×1.5	17	17	6	15.5
M14×1.5	19	19	6	15.5
M16×1.5	21	22	6	15.5
M18×1.5	23	17	6	17
M22×1.5	27	19	6	17
M26×1.5	31	22	8	19.5
M30×1.5	36	22	8	19.5

Datasheet — Form C, long spigot (metric fine)

Thread	Collar Ø d2	Head A/F s	Head height k	Length l
M8×1	12	12	4	12.5
M10×1	14	14	4	12.5
M22×1.5	27	19	6	20
M26×1.5	31	22	8	22.5
M30×1.5	36	22	8	22.5
M38×1.5	44	22	8	23
M45×1.5	52	24	8	23
M52×1.5	60	27	8	23

Dimensions in mm to DIN 7604. d2 = collar diameter, s = head width across flats, k = head height, l = length. Sealed with a DIN 7603 ring under the head (the cylindrical thread does not self-seal). Head widths to DIN 475-1 (DIN ISO 272 alternates exist). Form A = short screw-in spigot, Form C = long.

Applications

Typical applications include sealing and blanking threaded ports on hydraulic and pneumatic blocks and pumps, oil and coolant fill/drain points, and HVAC and irrigation manifolds where a light, low-profile plug is wanted. All parts are made to order, so size, thread, finish and certification are tailored to your specification.

Product

Screw Plugs Catalogue

DIN 906/908/909/910.

View →Material

CW614N (CuZn39Pb3)

Standard free-cutting brass.

View →Material

CW617N (CuZn40Pb2)

Hot-stamping / sealing brass.

View →Industry

HVAC/R

Sealing & blanking plugs.

View →Industry

Pneumatic & Hydraulic

Port / sealing plugs.

View →Guide

Thread Standards

Metric / BSP / pipe threads.

View →

How it works

Send a drawing or sample.
Quote in 24 hours.

Give the standard, thread and quantity. We are a brass turned-parts manufacturer in Jamnagar, India, exporting to 40+ countries.

Get a Quote →Contact Us

Frequently asked questions

How does a DIN 7604 plug seal?

Its cylindrical thread does not self-seal; a DIN 7603 sealing ring is fitted under the head against the port face.

What is the difference between Form A and Form C?

Form A has a short screw-in spigot; Form C has a long spigot for deeper thread engagement. Both share the head dimensions.

How is DIN 7604 different from DIN 910?

DIN 7604 is the light type — lower head and lighter build — while DIN 910 is the heavy-duty hex-head plug. Both use a cylindrical thread and a DIN 7603 ring.

What thread does DIN 7604 use?

Metric fine pitch (e.g. M22×1.5). There is no G pipe series in DIN 7604.
