ASME B18.3 socket set screw dimensions — Table 14

ASME B18.3 specifies hexagon socket set screw dimensions in the inch series: one hex socket size J per screw diameter, minimum key engagement T, a single point-diameter column C shared by cup and flat points, half-dog point diameter P and length Q, and the length threshold at which the cone point switches from 118° to 90°.

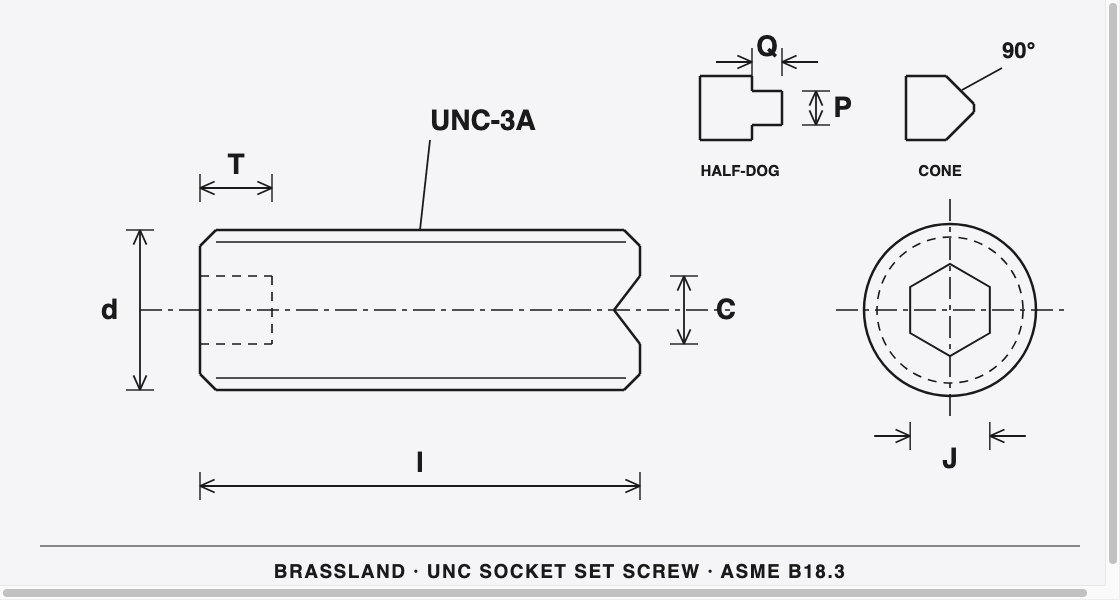

ASME B18.3 hex socket set screw dimensions — socket J, key engagement T, point diameter C, half-dog P and Q, cone point angles

Socket J, engagement T, point diameter C, half-dog P/Q and cone-point insets as charted below.

Size (basic dia)	Hex socket J	Min key engagement T	Cup & flat point dia C max / min	Half-dog dia P max / min	Half-dog length Q max / min	Cone point angle
#4 (0.1120)	0.050	0.070	0.061 / 0.051	0.075 / 0.070	0.030 / 0.026	90° for L ≥ 0.19
#6 (0.1380)	1/16 (0.062)	0.080	0.074 / 0.064	0.092 / 0.087	0.038 / 0.032	90° for L ≥ 0.19
#8 (0.1640)	5/64 (0.078)	0.090	0.087 / 0.076	0.109 / 0.103	0.043 / 0.037	90° for L ≥ 0.25
#10 (0.1900)	3/32 (0.094)	0.100	0.102 / 0.088	0.127 / 0.120	0.049 / 0.041	90° for L ≥ 0.25
1/4 (0.2500)	1/8 (0.125)	0.125	0.132 / 0.118	0.156 / 0.149	0.067 / 0.059	90° for L ≥ 0.31
5/16 (0.3125)	5/32 (0.156)	0.156	0.172 / 0.156	0.203 / 0.195	0.082 / 0.074	90° for L ≥ 0.38
3/8 (0.3750)	3/16 (0.188)	0.188	0.212 / 0.194	0.250 / 0.241	0.099 / 0.089	90° for L ≥ 0.44
1/2 (0.5000)	1/4 (0.250)	0.250	0.291 / 0.270	0.344 / 0.334	0.130 / 0.120	90° for L ≥ 0.57

Dimensions in inches per ASME B18.3, Table 14. Cone point: 118° on screws shorter than the listed length threshold. Key engagement T applies to screws at or above the shortest optimum length of Table 14; shorter (stub) screws have reduced engagement per Table 15. Cup and flat points share the single diameter column C; the cone point has no diameter spec (apex nominally sharp, slight flat or rounding permissible). Threads UNC/UNF, class 3A per ASME B1.1.

Oval point radius R

#4	#6	#8	#10	1/4	5/16	3/8	1/2
0.084	0.104	0.123	0.142	0.188	0.234	0.281	0.375

R in inches = 0.75 × basic screw diameter, per B18.3.

Governing document: ASME B18.3 (Tables 14–16), corroborated line-by-line against the MSC Direct B18.3 socket set screw reference tables (verified July 2026).

Catalog caution — optional cup points (Table 16)

B18.3 Table 16 also lists optional cup points (types B–G: knurled and self-locking forms) with smaller diameters than the standard Table 14 cup point — at 1/4 in., 0.125/0.114 versus 0.132/0.118. Some distributor charts print the Table 16 values in their “cup point” column, so two catalogs can disagree while both being right. The chart above publishes the standard Table 14 values; knurled or locking cup points are machined to drawing.
